4/20mA Loop powered indicators, General purpose, panel mounting

Loop powered indicators

Features:

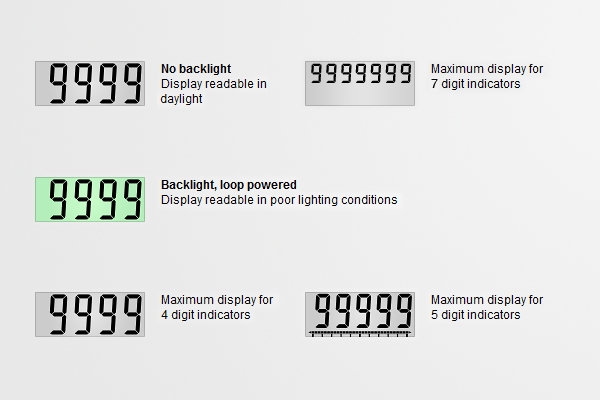

  • Large non multiplexed displays, models with:
  • 4 digits: 34mm or 15mm high
    5 digits: 29mm or 11mm high + bargraph
  • IP66 Front panel
  • -40°C to +70°C operation
  • Internal calibrator
  • Root extractor and lineariser
  • Tare function
  • Optional:
  • Backlight - may be loop or separately powered
    Alarms

Product details
These fourth generation general purpose 4/20mA loop powered indicators have large high contrast displays with a very wide viewing angle. Operating over an extended temperature range they contain many standard features previously only available as options. Coated printed circuit boards plus extensive thermal and vibration testing provides maximum reliability supported by a three year guarantee.

No additional charge is made for factory calibration or for scale and tag marking, however the indicators can easily be recalibrated on-site.

To select the model and options for your application please refer to the following table.

To select the model for your application please refer to the following table.

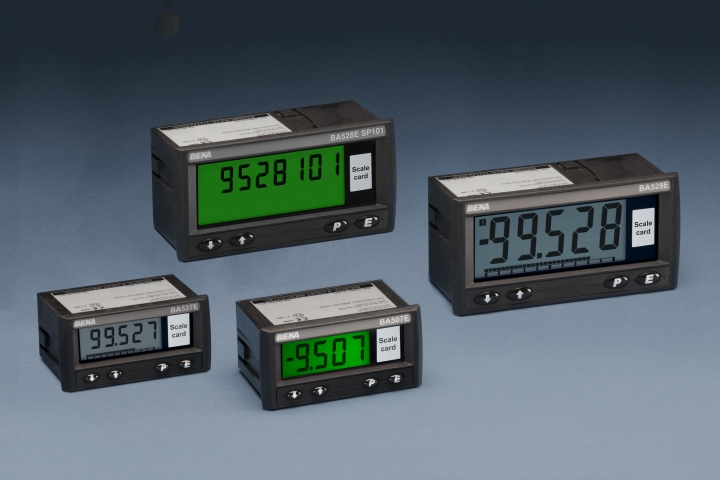

Model BA507E BA508E BA527E BA528E
BA507E BA508E BA527E# BA528E #
Mounting &
Enclosure
Panel
96 x 48
Panel
144 x 72
Panel
96 x 48
Panel
144 x 72
Protection Front IP66, rear IP20
Display 4 digits
15mm high
4 digits
34mm high
5 digits
11mm high
+ bargraph
5 digits
29mm high
+ bargraph
Optional
Alarms Yes
Backlight,
which may
be loop or
separately
powered
Yes
Scalecard
and tag /
application
marking (no
charge)
Yes
Model

Mounting &
Enclosure
Protection
Display
Downloads BA507E BA508E BA527E BA528E
Datasheets PDFDownload PDFDownload
PDFDownload
PDFDownload
Ingress
certificates
PDFDownload PDFDownload PDFDownload PDFDownload
Instruction
manuals
PDFDownload PDFDownload PDFDownload PDFDownload
Abbreviated
manuals
PDFDownload PDFDownload PDFDownload PDFDownload
Declarations
of Conformity
PDFDownload PDFDownload PDFDownload PDFDownload
CAD files PDFDownload PDFDownload PDFDownload PDFDownload

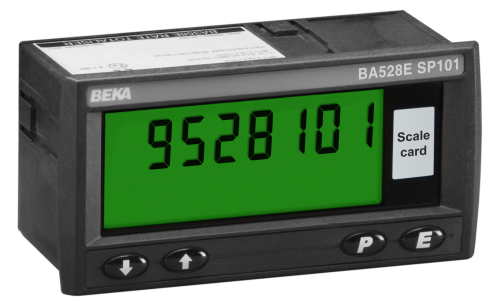

# Shown with optional backlight, separately powered.
