Modbus RTU displays

Display instrumentation for use in hazardous and safe areas

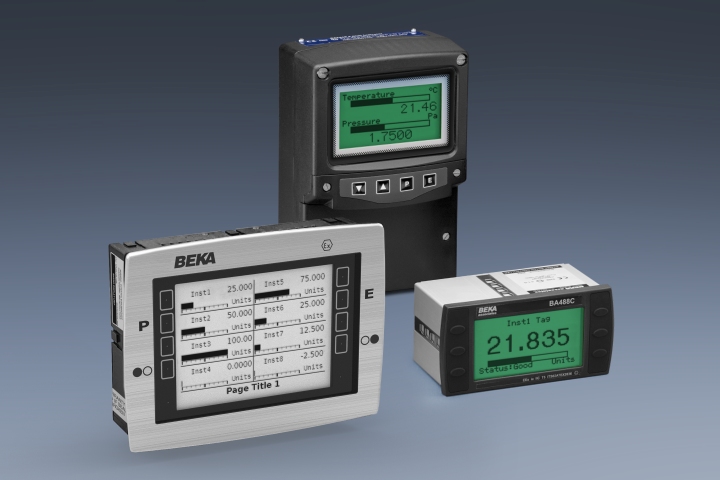

Modbus RTU displays

Features:

  • Displays text and simple graphics
  • High contrast display with backlight
  • Incorporates operator push buttons
  • Modbus RTU protocol
  • RS232 and RS485 ports
  • 11 standard screens with up to 8 variables on each
  • 2 solid state outputs
  • Galvanic isolator for hazardous area applications
  • Models for:
  • Intrinsically safe Ex ia applications
    General purpose applications
    Field and panel mounting
  • Accessories:
  • Pipe mounting kits

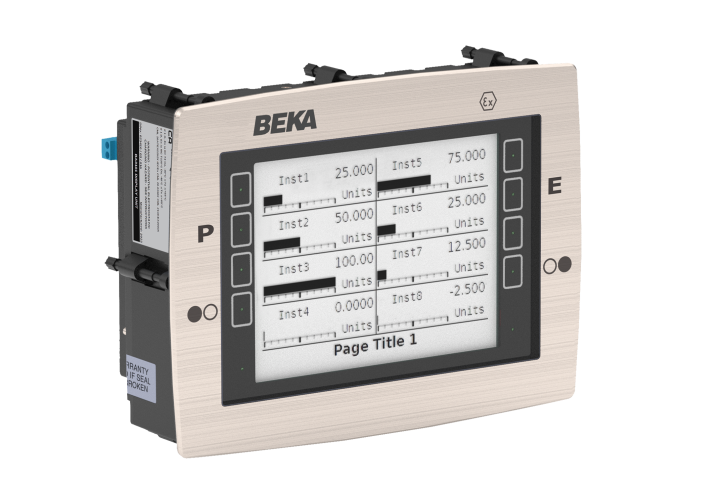

These Modbus RTU displays incorporate a high contrast backlit display, push buttons and two solid state outputs, to form a low cost operator interface which is ideal for simple process and machine control applications.

The displays support Modbus RTU protocol and include eleven standard screen formats that can display up to eight variables on each screen, some with bargraphs. If custom display formats are required, these can be constructed using the free BEKA ScreenWriter software.

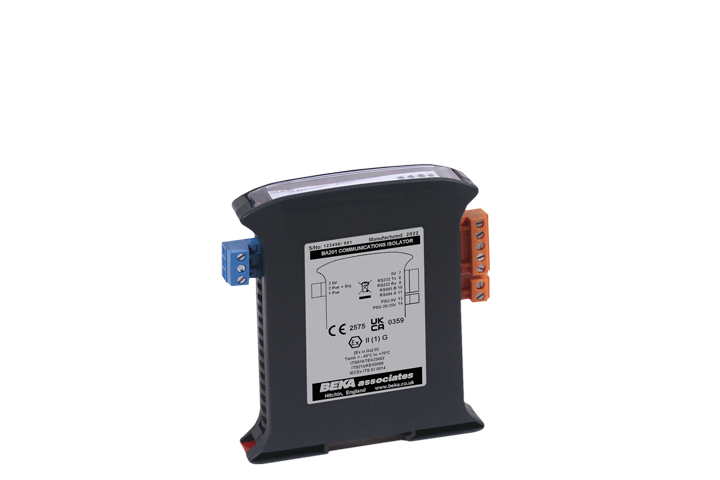

The intrinsically safe models communicate and are powered via a 2 or 3 wire system from a galvanic isolator in the safe area. To simplify hazardous area installations, the BA201 certified galvanic isolator which has RS232 and RS485 safe area ports can power up to four BEKA intrinsically safe Modbus RTU Displays.

The general purpose models are separately powered and have RS232 and RS485 ports.

Modbus RTU displays for hazardous and safe areas

For more information, please choose the model which best suits your application from the table below.
