Set point stations [set point generators]

Display instrumentation for use in hazardous and safe areas
Set point stations [set point generators]

Features:

  • 4/20mA Loop powered
  • Front panel push buttons
  • Easy to read display in engineering units
  • Noryl or rugged 316 stainless steel enclosure, both provide IP66 front of panel protection.
  • Models for:
  • Intrinsically safe Ex ia applications
    General purpose applications
  • Accessories:
  • Backlight
    Scale and tagging

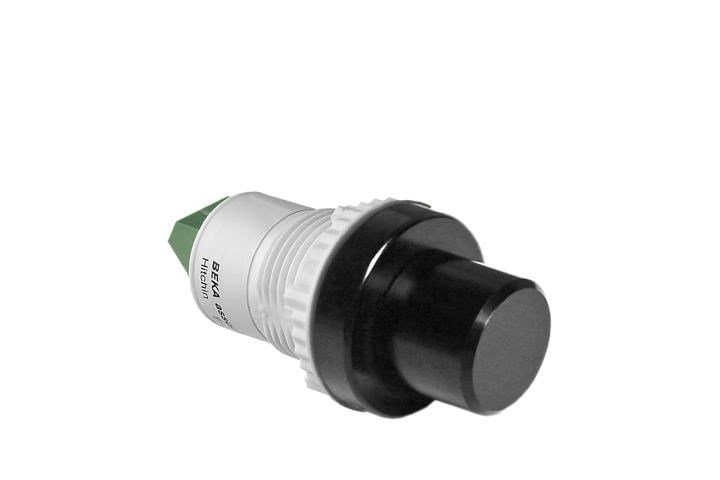

    Rotary encoder

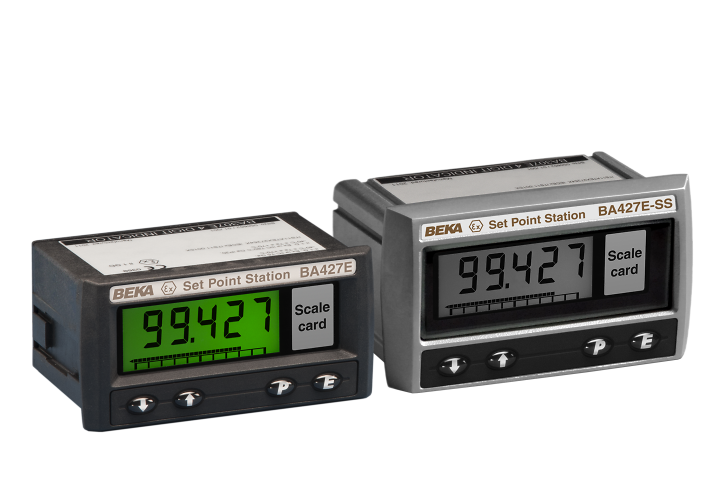

Loop powered set point stations (set point generators) enable the current flowing in a 4/20mA loop to be manually adjusted from within a process area. The set point station's digital display may be calibrated to show the 4/20mA current in engineering units, thus allowing an operator to easily adjust a controller set point or an actuator position.

Optional rugged 316 stainless steel enclosure provides front of panel impact and IP66 protection, allowing installation into an aperture in an Ex e, Ex p or Ex t certified panel enclosure without invalidating the panel enclosure's certification.

For more information, please choose the model which best suits your application from the table below.
