BA329-GL and BA329-PC Eight input 4/20mA externally powered indicators

Display instrumentation for use in hazardous and safe areas
BA3101 and BA3102 Pageant Operator Display

Features:

  • No programming required
  • Easy configuration and calibration via front panel touch buttons.
  • 8 touch buttons with tricolour annunciators
  • Ex ia intrinsic safety certification
  • Space saving for Zone 1, 2, 21 and 22 applications
  • 8 galvanically isolated 4/20mA inputs
  • 7 inch backlit screen
  • IP66 stainless steel front panel with:
  • BA329-GL  Toughened glass display window
    BA329-PC  Impact resistant display window certified for installation in Ex e or Ex t enclosure.
  • Also see extensive range of loop powered 4/20mA indicators
Product downloads
Product dimensions
IECEx logoEX logoCE logoUKCA logo

Product details

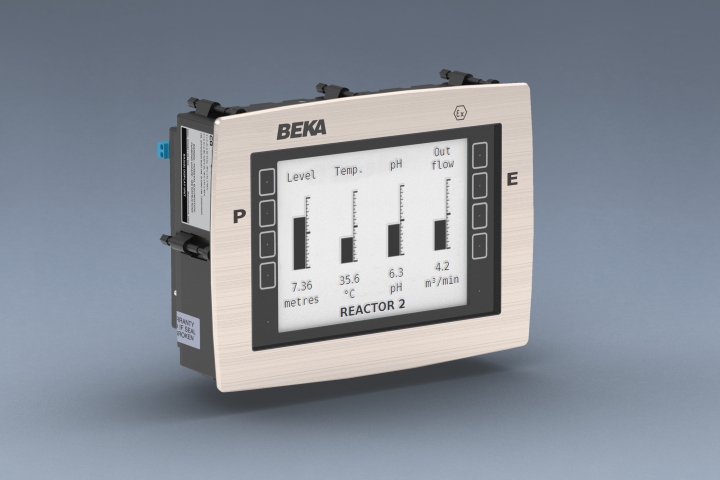

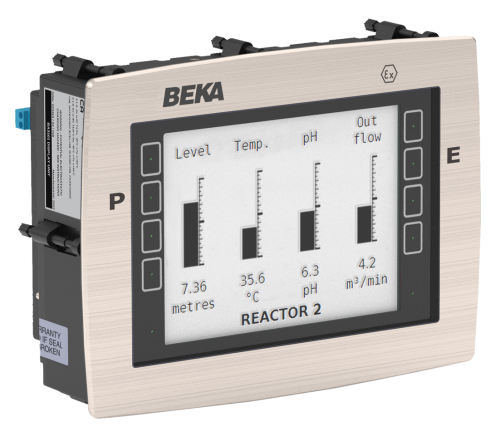

These UK designed and manufactured intrinsically safe indicators can display up to eight 4/20mA inputs on a 7 inch backlit display.  Inputs can be shown singly, or in groups of 2, 4 or 8 with individual units of measurement and tag information.  No programming is required.  The BA329 is easily configured and calibrated via the 8 front panel touch buttons using a simple intuitive menu.  If a Configuration Table is completed when the BA329 indicator is ordered, the indicator can be supplied configured and calibrated ready for installation for no additional charge.

International Ex ia intrinsic safety certification allows installation in Zones 0, 1, 2, 20, 21 or 22 hazardous areas. In addition to intrinsic safety, the BA329-PC has a certified impact and ingress protected front allowing installation in an Ex e or Ex t enclosure without invalidating the enclosure's apparatus certification.

Model BA329-GL BA329-PC
BA329-GL  BA329-PC

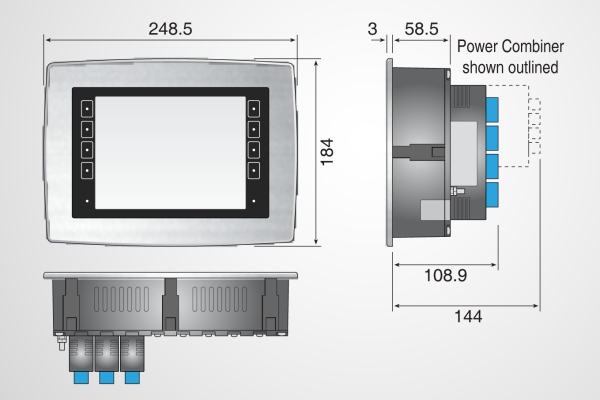

Mounting Panel 248.5 x 184mm
Protection Front IP66, rear IP20
 Front IP66, certified for installation
in Ex e or Ex t enclosure.
Rear IP20
Certification
International IECEx
 Gas - Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust -  Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C		 Gas - Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust -  Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C

Can be installed in an Ex e or Ex t enclosure
without invalidating enclosure certification.
Europe ATEX
 Gas - Group II Category 1G Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust - Group II Category 1D Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C
 Gas - Group II Category 1G Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust - Group II Category 1D Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C

Can be installed in an Ex e or Ex t enclosure
without invalidating enclosure certification.
UK UKEX
 Gas - Group II Category 1G Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust - Group II Category 1D Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C
 Gas - Group II Category 1G Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust - Group II Category 1D Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C

Can be installed in an Ex e or Ex t enclosure
without invalidating enclosure certification.
Downloads BA329-GL BA329-PC
Datasheet PDFDownload PDFDownload
IECEx certificate PDFDownload PDFDownload
ATEX certificate PDFDownload PDFDownload
UKEX certificate
 PDFDownload PDFDownload
Ingress certificates PDFDownload PDFDownload
Instruction manual PDFDownload PDFDownload
Declaration of Conformity (EU)
 PDFDownload PDFDownload
Declaration of Conformity (UK)
 PDFDownload PDFDownload
Descriptive System Drawing
(A .dwg copy of this drawing is contained in the CAD zip file)		 PDFDownload PDFDownload
CAD files PDFDownload PDFDownload
