Tachometers, General Purpose, panel mounting

Display instrumentation for use in hazardous and safe areas

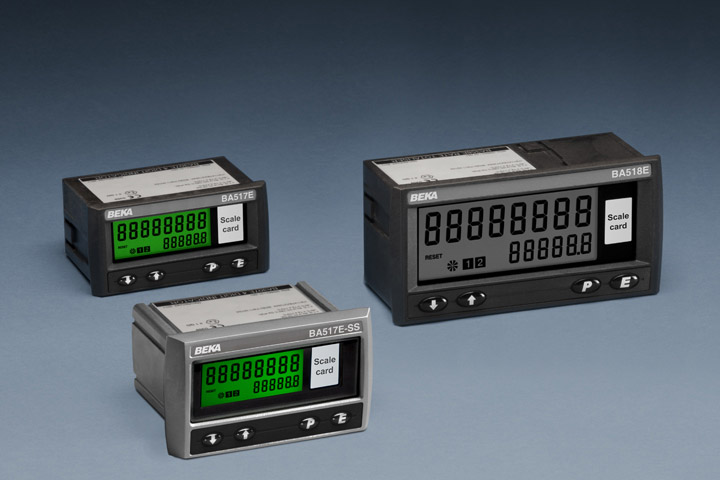

Tachometers

Features:

  • Reliable and cost effective
  • Proximity detector, magnetic pick-off, voltage pulse, or switch contact input.
  • Separate speed and run-time displays
  • Rugged Stainless Steel model for use in severe environments
  • BA518E has isolated synchronous pulse output as standard
  • Optional:
  • Internally powered display backlight
    Isolated Alarms
    Isolated 4/20mA output
    BA517E and BA517E-SS isolated synchronous pulse output.
Product downloads
96 x 48mm Product dimensions
105 x 60mm Product dimensions
144 x 72mm Product dimensions
New application guide

Product details
These easy to use, general purpose tachometers can process and simultaneously display the total number of pulses received and their rate in the same or different engineering units from a wide variety of sensors. To simplify maintenance, the instruments also contain a second display which can simultaneously show the run-time of the monitored machinery.

Accessories, include a display backlight, isolated dual alarms, isolated 4/20mA output for BA517E and BA517E-SS and isolated synchronous pulse output.

Tachometers can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. Specified tag or application information can also be printed onto the rear of the instrument.

Other tachometers in our range include:



To select the model and options for your application please refer to the following table.

To select the model for your application please refer to the following table.

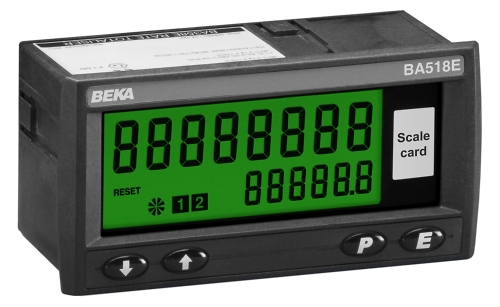

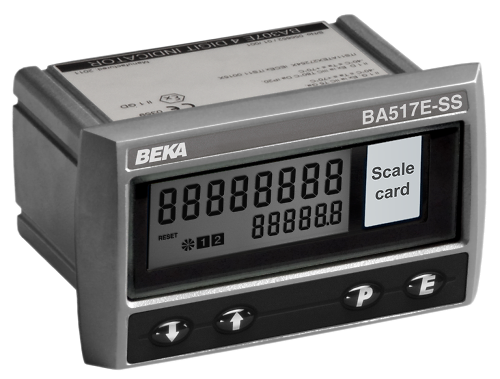

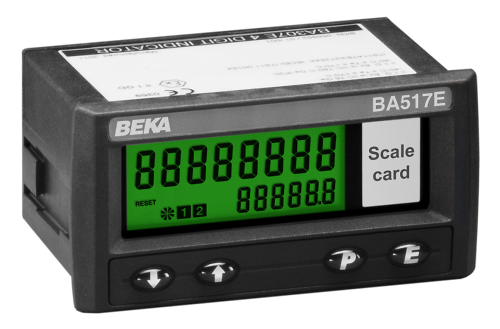

Model BA517E BA518E BA517E-SS
BA517E  BA518E # BA517E-SS #
Mounting &
Enclosure		 Panel
96 x 48 mm
 Panel
144 x 72 mm
 Rugged panel
105 x 60 mm
Case material
 Noryl
 316 Stainless Steel
Protection Front IP66, rear IP20
Display Speed:
8 digits 9mm high
Run-time:
6 digits 6mm high
 Speed:
8 digits 18mm high
Run-time:
6 digits 12mm high
 Speed:
8 digits 9mm high
Run-time:
6 digits 6mm high
Optional
Backlight
 Yes
Alarms
 Yes*
 Yes
 Yes*
4/20mA output
 Yes*
 Yes
 Yes*
Pulse output
 Yes*
 Standard
 Yes*
Model

Mounting &
Enclosure
Case material
Protection
Display
Downloads BA517E
 BA518E
 BA517E-SS
Datasheets PDFDownload PDFDownload
 PDFDownload
Ingress
certificates		 PDFDownload PDFDownload PDFDownload
Instruction
manuals		 PDFDownload PDFDownload PDFDownload
Abbreviated
manuals		 PDFDownload PDFDownload PDFDownload
Application
guides		 PDFDownload PDFDownload PDFDownload
Declarations of
Conformity (EU)
 PDFDownload PDFDownload PDFDownload
Declarations of
Conformity (UK)
 PDFDownload PDFDownload PDFDownload
CAD files PDFDownload PDFDownload PDFDownload

# Shown with optional separately powered backlight.
* Only one output option can be fitted.
