Tachometers, General Purpose, field mounting


  • Reliable and cost effective
  • Proximity detector, open collector, magnetic pick-off, voltage pulse, or switch contact input.
  • Separate speed and run-time displays
  • Isolated synchronous pulse output
  • Optional:
        Internally powered display backlight
        Isolated Alarms
        Isolated 4/20mA output
        Stainless steel legend plate
Download logoProduct downloads
  PDF logoNEW application guide

This easy to use tachometer can display speed in engineering units from a wide variety of pulse output sensors such as a proximity detector or switch contact. To simplify maintenance, the instrument also contains a second display which can simultaneously show the run-time of the monitored machinery.

Accessories, include a display backlight, isolated dual alarms, isolated synchronous pulse output and an isolated 4/20mA output.

Tachometers can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. An optional stainless steel legend plate is also available which can be supplied laser engraved with customer specified tag and application information.

Other tachometers in our range include:


To select options for your application please refer to the following table.

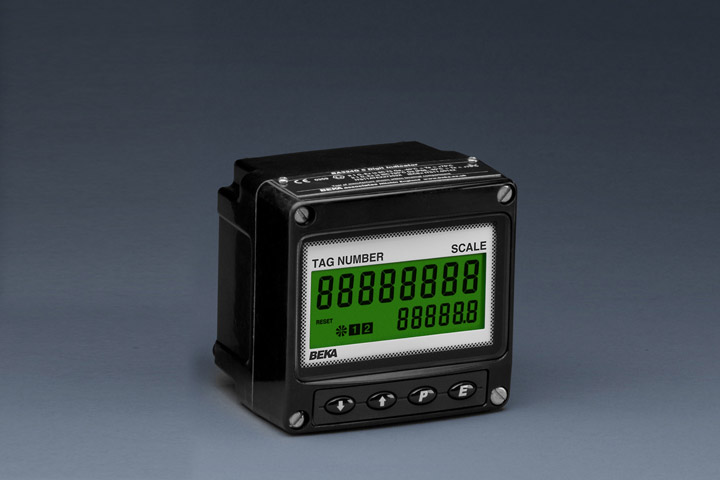

BA514G Tachometer#
Mounting Field 122 x 120mm
Protection IP66
Display Speed: 8 digits 18mm high
Run-time: 6 digits 12mm high
Backlight Yes
Alarms Yes
4/20mA output Yes



Datasheet PDF logodownload
Ingress certificate PDF logodownload
Instruction manual PDF logodownload
Application guide PDF logodownload
Declaration of Conformity PDF logodownload
CAD files ZIP logodownload

# Shown with optional separately powered backlight.
