Flow Batch controller, Intrinsically safe, panel mounting

Flow Batch controller

Features:

  • Intrinsic safety certification
  • Easy to use
  • High contrast display with backlight
  • Accepts pulse or 4/20mA input
  • 9 setpoints
  • 3 configurable outputs
EX logoFM logo

Product details

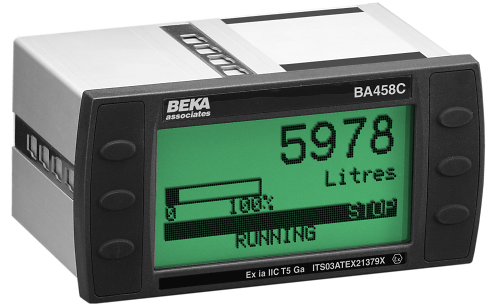

This second generation, BA458C flow batch controller is ideal for accurately dispensing liquids, solids or components in hazardous areas and despite its sophisticated control functions, it remains very easy to use and configure.

Our batch controllers have carefully designed display screens, which may be annotated in English, French or German, lead the user intuitively through the configuration options. The user screen may be selected so that only essential information is presented to the operator. The instrument accepts pulse or analogue 4/20mA inputs and incorporates a sixteen point lineariser and square root extractor making it usable with almost any flowmeter or sensor.

To select the options for your application please refer to the following table.

Model BA458C
BA458C
Mounting Panel 144 x 72mm
Protection Front IP66, rear IP20
Display High contrast 86.5mm x 45mm with backlight
Outputs
3 galvanically isolated single pole,
solid state dc switches which may be
individually configured as control or status outputs.
Certification
Europe ATEX ATEX Group II Category 1G
Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +60°C
USA FM
3610 Entity CL I Div. 1
Gp A, B, C & D T4 Ta = +60°C

3611 Nonincendive CL I Div. 2
Gp A, B, C & D T4 Ta = +60°C
Canada cFM
Entity CL I Div. 1
Gp A, B, C & D T4 Ta = +60°C

Nonincendive CL I Div. 2
Gp A, B, C & D T4 Ta = +60°C
Optional
Outputs
3 additional single pole,
solid state dc switches which may
be configured as control or status outputs.
Model

Mounting &
Enclosure
Protection
Display
Outputs
