Set point stations [set point generator], Intrinsically safe, panel mounting

Set point stations [set point generator]

Features:

  • Intrisic safety certification
  • Loop powered
  • Front panel push buttons
  • 5 digit display with bargraph
  • IP66 Front panel
  • Rugged Stainless Steel model for use in Ex e, Ex n, Ex p and Ex t panel enclosures in Zones 1, 2, 21 & 22.
  • Panel mounting
  • Optional:
  • Backlight - may be loop or separately powered
    BA490 Rotary encoder
IECEx logoEX logoETL logoCCOE PESO logo

Product details
This intrinsically safe panel mounting set point station [set point generator] enables the current flowing in a 4/20mA loop to be manually adjusted from within a hazardous area.

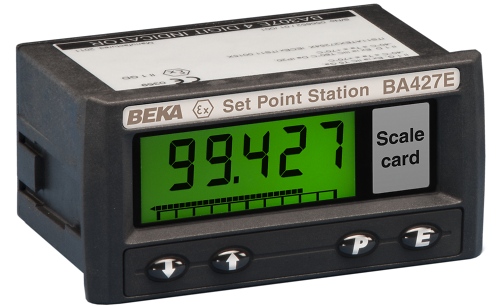

The BA427E incorporates a 5 digit display plus a bargraph which can be calibrated to show the 4/20mA current in engineering units. Adjustment is via the front panel push buttons.

Other Set point stations in our range include:



To select the model and options for your application please refer to the following table.

To select the model for your application please refer to the following table.

Model BA427E BA427E-SS
BA427E # BA427E-SS
Mounting &
Enclosure
Panel 96 x 48mm
Rugged Stainless Steel
panel 105 x 60
Protection Front IP66, rear IP20
Display 5 digits 11mm high + bargraph
Control
4 front panel push buttons
Certification
International
IECEx
Gas - Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C
Dust - Ex ia IIIC T80°C Da IP20 -40°C ≤ Ta ≤ +70°C

May be installed in Ex e, Ex n, Ex p
or Ex t panel enclosure without
invalidating enclosure certification.
-40°C ≤ Ta ≤ +60°C
Europe
ATEX
Gas - Group II Category 1G Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C
Dust - Group II Category 1D Ex ia IIIC T80°C Da IP20 -40°C ≤ Ta ≤ +70°C

May be installed in Ex e, Ex n, Ex p
or Ex t panel enclosure without
invalidating enclosure certification.
-40°C ≤ Ta ≤ +60°C
USA
ETL
Entity
IS CL I, Div 1, GP A, B, C, & D:
CL I, ZN 0, AEx ia IIC T5 Ga.
-40°C ≤ Ta ≤ +70°C

Nonincendive
NI CL I, DIV 2, GP A, B, C & D:
CL II, DIV 2, GP E, F & G:
CL III, T5.
CL I, ZN 2, GP IIA, IIB, IIC, T5
-40°C ≤ Ta ≤ +70°C
N/A
Canada
cETL
Entity
IS CL I, Div 1, GP A, B, C, & D:
CL I, ZN 0, Ex ia IIC T5 Ga.
-40°C ≤ Ta ≤ +70°C

Nonincendive
NI CL I, DIV 2, GP A, B, C & D:
CL II, DIV 2, GP E, F & G:
CL III, T5.
CL I, ZN 2, T5
-40°C ≤ Ta ≤ +70°C
N/A
India
CCOE/PESO
Gas - Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C
Dust - Ex ia IIIC T80°C Da IP20 -40°C ≤ Ta ≤ +70°C
N/A
Optional
Backlight
Green - may be loop or separately powered
BA490
Rotary encoder
Yes
Model

Mounting &
Enclosure
Protection
Display
Control
Downloads BA427E
BA427E-SS
Datasheets PDFDownload PDFDownload
IECEx
certificates
PDFDownload PDFDownload
ATEX
certificates
PDFDownload PDFDownload
ETL & cETL
certificate
PDFDownload N/A
CCOE/PESO
certificates
PDFDownload N/A
Ingress
certificates
PDFDownload PDFDownload
Instruction
manuals
PDFDownload PDFDownload
Abbreviated
manuals
PDFDownload PDFDownload
Declarations
of Conformity
PDFDownload PDFDownload
CAD files PDFDownload PDFDownload

# Shown with optional loop powered backlight.
