Rugged Set point stations [set point generators]

Display instrumentation for use in hazardous and safe areas

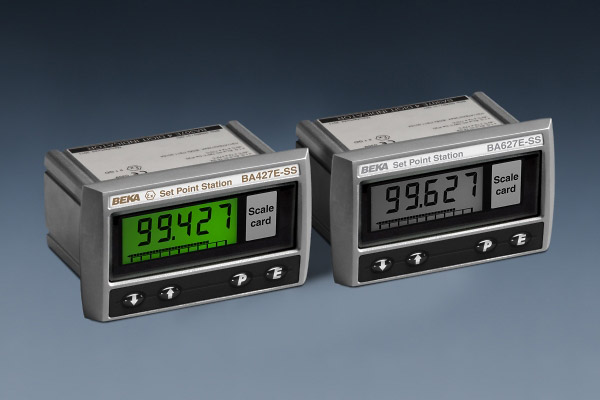

New rugged set point stations

Features:

  • Rugged stainless steel enclosure with impact resistant armoured glass window.
  • 4/20mA Loop powered
  • Front panel push buttons
  • Easy to read display in engineering units
  • Sealed front panel
  • Models for:
  • Intrinsically safe Ex i applications. May be mounted in an Ex e, Ex p, Ex n or Ex t panel enclosure without ivalidating panel enclosure certification.
    General purpose applications
  • Accessories:
  • Backlight
    Scale and tagging
    Rotary encoder

Loop powered set point stations [set point generator] enable the current flowing in a 4/20mA loop to be manually adjusted from within a process area. The set point stations digital display may be calibrated to show the 4/20mA current in engineering units, thus allowing an operator to easily adjust a controller set point or an actuator position.

For more information, please choose the model which best suits your application from the table below.

Intrinsically safe
panel mounting

Intrinsically safe Rugged Set point station [set point generator]

General purpose
panel mounting

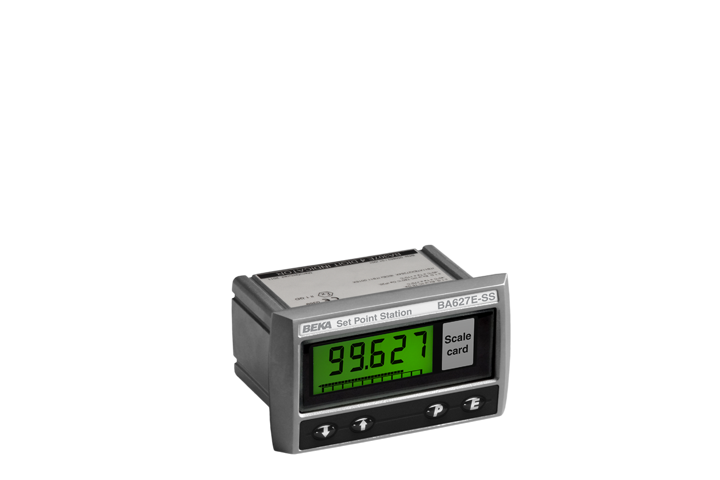

General purpose Rugged Set point station [set point generator]
