Modbus RTU display, General purpose, field mounting

Display instrumentation for use in hazardous and safe areas
Modbus RTU display

Features:

  • High contrast 86.5mm x 45mm display with backlight
  • Modbus, BEKA & Legacy protocols
  • Operator push buttons & two solid state outputs
  • RS232 & RS485 ports
  • Robust IP66 GRP enclosure

Product details

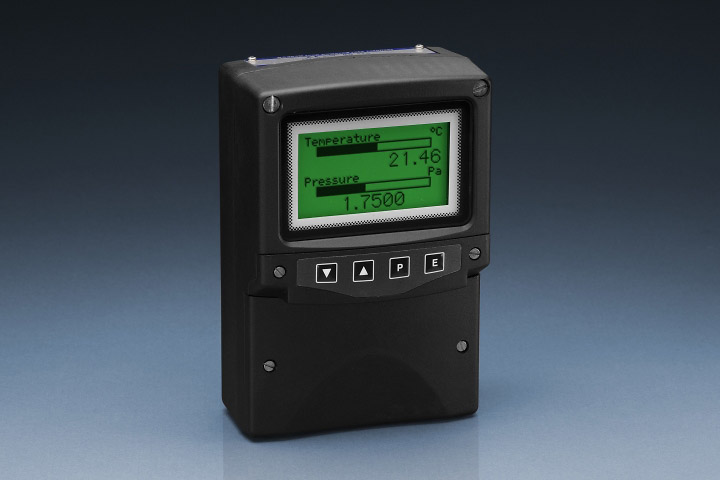

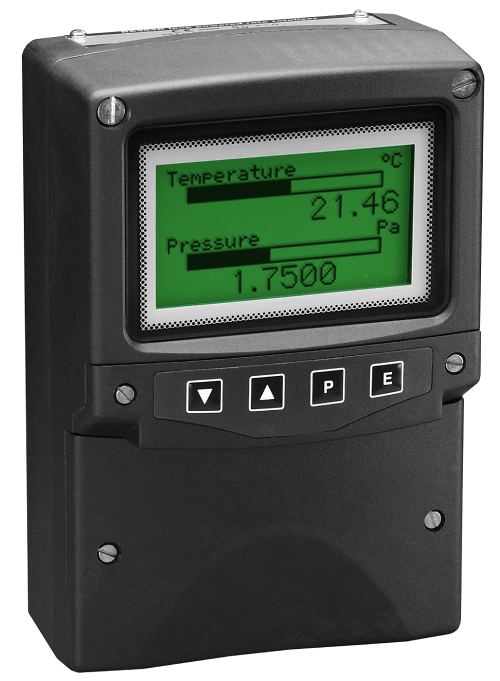

This BA684D displays text and simple graphics in a process area. Incorporating a high contrast backlit display, push buttons and two solid state outputs, this low cost operator interface is ideal for simple process control applications.

The text display, which has RS232 and RS485 ports, supports Modbus, BEKA and legacy protocols and includes eleven standard screen formats which display up to eight variables on each screen, some with bargraphs. If custom display formats are required, these can be constructed using the free BEKA ScreenWriter software.

A powerful Pattern Matching facility is resident in the Modbus RTU display which enables the capture and display of data contained in proprietary ASCII serial strings.

Model BA684D
BA684D
Mounting Field
Protection IP66
Display High contrast 86.5mm x 45mm
with backlight, up to 8 variables
Communications Interface RS232 or RS485
Protocol
Modbus, BEKA & Legacy
Operator push buttons
4
Connections for remote operator push buttons
6
Solid state outputs
2
Model

Mounting &
Enclosure
Protection
Display
Communications
Interface
Protocol
Operator push buttons
Connections for remote operator push buttons
Solid state outputs
