Rugged 4/20mA Loop powered indicators, Intrinsically safe, panel mounting

Rugged 4/20mA Loop powered indicators, Intrinsically safe, panel mounting

Features:

  • ATEX & IECEx gas & dust intrinsic safety certification
  • FM & cFM gas intrinsic safety certification
  • Large non multiplexed displays, models with:
  • 4 digits: 15mm high
    5 digits: 11mm high + bargraph
  • IP66 Front panel
  •   Rugged stainless steel cases suitable for use in Ex e,
      Ex p and Ex t panel enclosures in Zones 1, 2, 21 & 22.
  • -40°C to +70°C operation
  • Internal calibrator
  • Root extractor and lineariser
  • Tare function
  • Optional:
  • Backlight - may be loop or separately powered
    Alarms

Product details

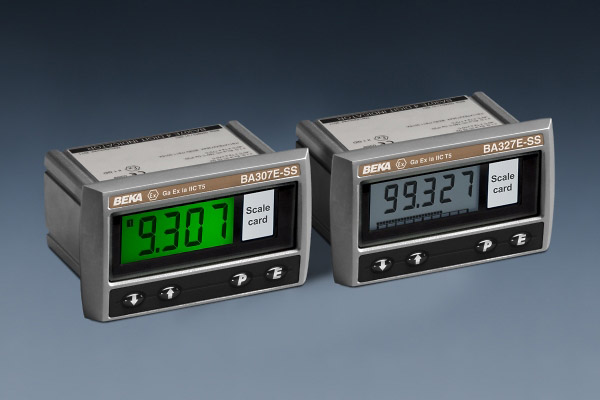

These robust panel mounting intrinsically safe 4/20mA indicators have all of the features of our standard intrinsically safe panel models, plus rugged stainless steel cases which allow them to be installed in a certified Ex e, Ex p or Ex t panel enclosure located in Zone 1, 2, 21 or 22 without invalidating the panel enclosure's certification.

No additional charge is made for factory calibration or for scale and tag marking, however the indicators can easily be recalibrated on-site.

To select the model and options for your application please refer to the following table.

To select the model for your application please refer to the following table.

Model BA307E-SS BA327E-SS
BA307E-SS BA327E-SS
Mounting &
Enclosure
Rugged Stainless Steel panel 105 x 60
Protection Front IP66, rear IP20
Display 4 digits
15mm high
5 digits
11mm high
+ bargraph
Certification
Europe
ATEX
Gas - Group II Category 1G Ex ia IIC T5 Ga    -40°C ≤ Ta ≤ +70°C
Dust - Group II Category 1D Ex ia IIIC T80°C Da IP20    -40°C ≤ Ta ≤ +70°C

May be installed in Ex e, Ex p or Ex t panel enclosure without invalidating enclosure certification.
USA FM &
Canada cFM
Entity IS / I / A, B, C, D / T5 @ 70°C
I / 0 / AEx ia IIC / T5 @ 70°C

May be installed in AEx e, AEx p or AEx t
panel enclosure without invalidating
enclosure certification.

Non incendive
NI / I / 2 / ABCD / T5 @ 70°C - NIFW
NI/ CLI Zone 2 Gp IIC T5 @ 70°C
International
IECEx
Gas - Ex ia IIC T5 Ga    -40°C ≤ Ta ≤ +70°C
Dust - Ex ia IIIC T80°C Da IP20    -40°C ≤ Ta ≤ +70°C

May be installed in Ex e, Ex p or Ex t panel enclosure without invalidating enclosure certification.
Optional
Alarms Yes
Backlight,
which may
be loop or
separately
powered
Yes
Slide-in
scale card
Yes
No charge for printing with customer specified information
Model

Mounting &
Enclosure
Protection
Display
Downloads BA307E-SS BA327E-SS
Datasheets PDFDownload
PDFDownload
ATEX
certificates
PDFDownload PDFDownload
FM
certificates
PDFDownload PDFDownload
cFM
certificates
PDFDownload PDFDownload
IECEx
certificates
PDFDownload PDFDownload
Ingress
certificates
PDFDownload PDFDownload
Instruction
manuals
PDFDownload PDFDownload
Abbreviated
manuals
PDFDownload PDFDownload
Application
guide AG300
PDFDownload PDFDownload
Declarations
of Conformity
PDFDownload PDFDownload
CAD files PDFDownload PDFDownload
