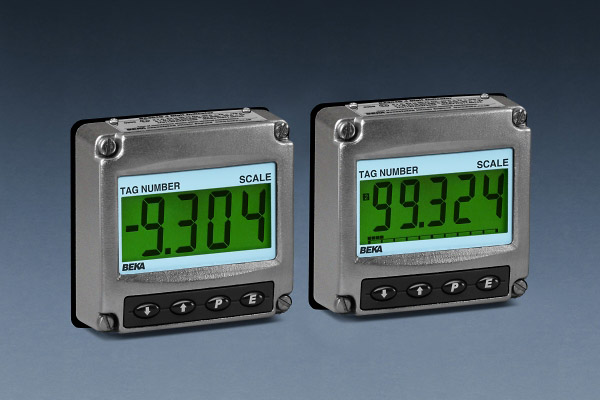

Rugged Stainless Steel 4/20mA Loop powered indicators, panel mounting

Display instrumentation for use in hazardous and safe areas
Loop powered indicators

Features:

  • Intrinsically safe and general purpose models
  • Component certified indicator enclosures permit installation in Ex e, Ex p or Ex t panel enclosure without invalidating the panel enclosure's certification
  • Large non multiplexed displays, models with:
  • 4 digits: 34mm or 15mm high
    5 digits: 29mm or 11mm high + bargraph
  • IP66 and impact resistant stainless steel front panels
  • -40°C to +70°C operation
  • Internal calibrator
  • Root extractor and lineariser
  • Tare function
  • Optional:
  • Backlight - may be loop or separately powered
    Alarms
Product downloads
Display options
Product dimensions
Rugged indicators product summary
Application guide AG300
IECEx logoEX logoCE logo

Product details
Rugged, intrinsically safe 4/20mA loop powered indicators with 316 stainless steel enclosures that provide front of panel impact and IP66 protection. Allows installation into an aperture in an Ex e, Ex p or Ex t certified panel enclosure without invalidating the panel enclosure's certification.

Operating over an extended temperature range, the fourth generation design and extensive thermal and vibration testing provides maximum reliability supported by a three year guarantee.

No charge is made for factory configuration or printing slide-in scale card with customer specified information. Indicators can easily be recalibrated on-site.

To select the model and options for your application please refer to the following table.

To select the model for your application please refer to the following table.

Model BA304G-SS-PM BA324G-SS-PM BA504G-SS-PM
 BA524G-SS-PM
BA304G-SS-PM # BA324G-SS-PM # BA307E-SS #
 BA327E-SS #
Mounting &
Enclosure		 Rugged Stainless Steel panel 122 x 120
 Rugged Stainless Steel panel 122 x 120
Protection Front IP66, rear IP20 Front IP66, rear IP20
Display 4 digits
34mm high		 5 digits
29mm high
+ bargraph
 4 digits
34mm high
 5 digits
29mm high
+ bargraph
Certification
International
IECEx
 Gas - Ex ia IIC T5 Ga
-40°C ≤ Ta ≤ +70°C
Dust - Ex ia IIIC T80°C Da IP20
-40°C ≤ Ta ≤ +70°C

May be installed in Ex e, Ex p or Ex t panel
enclosure without invalidating
enclosure certification.
 N/A
Europe
ATEX		 Gas - Group II Category 1G
Ex ia IIC T5 Ga
-40°C ≤ Ta ≤ +70°C
Dust - Group II Category 1D
Ex ia IIIC T80°C Da IP20
-40°C ≤ Ta ≤ +70°C

May be installed in Ex e, Ex p or Ex t panel
enclosure without invalidating
enclosure certification.
 N/A
Optional
Alarms Yes Yes
Backlight,
which may
be loop or
separately
powered		 Yes Yes
Slide-in
scale card
 Yes
No charge for printing with customer specified information
 Yes
No charge for printing with customer specified information
Model

Mounting &
Enclosure
Protection
Display
Downloads BA304G-SS-PM BA324G-SS-PM BA504G-SS-PM
 BA324G-SS-PM
Datasheets PDFDownload PDFDownload
 PDFDownload
 PDFDownload
IECEx
certificates		 PDFDownload PDFDownload N/A
 N/A
ATEX
certificates		 PDFDownload PDFDownload N/A N/A
Ingress
certificates		 PDFDownload PDFDownload PDFDownload PDFDownload
Instruction
manuals		 PDFDownload PDFDownload PDFDownload PDFDownload
Abbreviated
manuals		 PDFDownload PDFDownload PDFDownload PDFDownload
Application
guides		 PDFDownload PDFDownload N/A
 N/A
Declarations of
Conformity (EU)
 PDFDownload PDFDownload PDFDownload PDFDownload
CAD files PDFDownload PDFDownload PDFDownload PDFDownload

# Shown with optional backlight, separately powered.
