BA3601 Pageant Digital Output Module 4 x Contact

BA3601 Pageant Digital Output Module 4 x Contact

Features:

IECEx logoEX logoUKCA logo

Product details

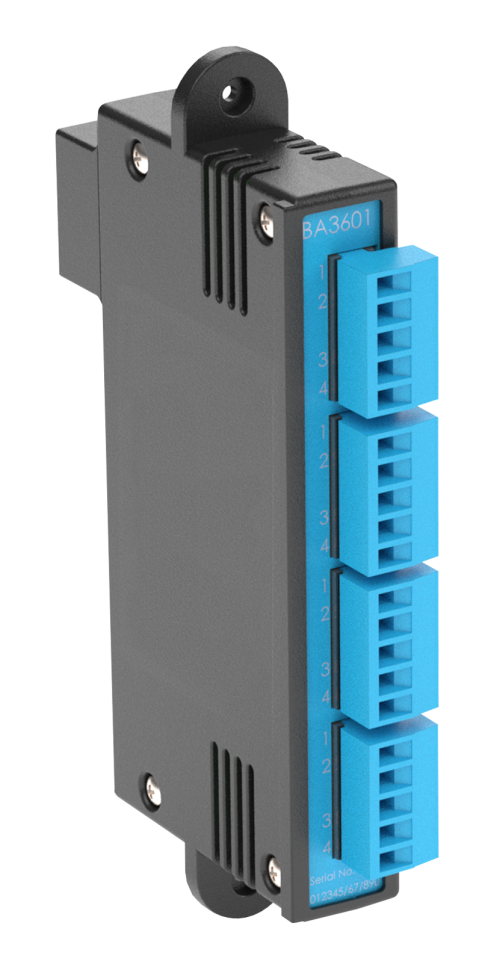

The Pageant BA3601 module has four isolated solid state contact outputs, each certified as a separate intrinsically safe circuit. The module is intended for switching intrinsically safe loads located in any hazardous area, or low power safe area loads via a Zener barrier or a galvanic isolator.

Separate apparatus certification for the module allows it to be safely plugged into any one of the seven slots on a Pageant BA3101 operator display without the need for additional certification or approval.

If requirements change, a BA3601 module may be fitted on-site to an operator display which has already been installed and commissioned.

Model BA3601
BA3601
Mounting Plug-in to one of the seven I/O sockets at rear of the BA3101 display, 2 captive screws
Protection IP20
Certification
International IECEx
Gas - Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust - Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C
Europe ATEX
Gas - Group II Category 1G Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust - Group II Category 1D Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C
UK UKCA
Gas - Group II Category 1G Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +65°C
Dust - Group II Category 1D Ex ia IIIC T135ºC Da -40°C ≤ Ta ≤ +65°C
Model

Mounting &
Enclosure
Protection
Downloads BA3601
Datasheet PDFDownload
IECEx certificate PDFDownload
ATEX certificate PDFDownload
UKCA certificate
PDFDownload
Instruction manual PDFDownload
Declaration of Conformity (EU)
PDFDownload
Declaration of Conformity (UK)
PDFDownload
CAD files PDFDownload
