4/20mA Loop powered indicators, Flameproof, field mounting



Ex logo

Features:

  • ATEX and flame proof certification.

  • ± 99999 display, 10mm high

  • IP66, NEMA 4X aluminium & 316 stainless steel enclosure.

  • No additional charge for configuration & calibration

  • Configurable on-site via free Windows® compatible software.
Download logoProduct downloads

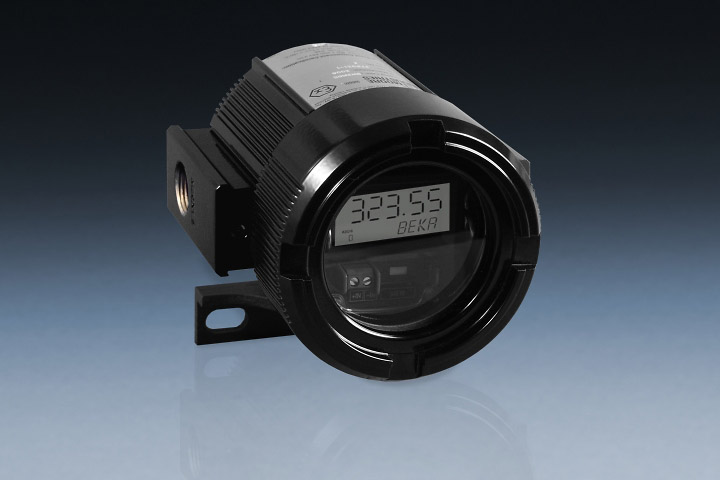

Five digit ATEX flame proof, loop powered indicators housed in aluminium or 316 stainless steel enclosures.

Configuration and calibration is performed via simple Windows® compatible software connected to the instrument by a temporary serial communications cable.

Units of measurement can be displayed on a five digit alphanumerical display below the numerical display. Characters are entered via the configuration software and are remembered by the instrument when the 4/20mA measurement loop is disconnected.

Other loop powered indicators in this range include:





To select the model for your application please refer to the following table.


Model

BR323AL

BR323SS

BR323AL 4/20mA Loop powered indicator BR323SS 4/20mA Loop powered indicator
Mounting & Enclosure Epoxy painted aluminium 316 stainless steel
Protection IP66, NEMA 4X enclosures
Display 5 digits 10mm high
Certification
Europe ATEX ATEX Group II Category 2GD Exd T6 -20°C ≤ Ta ≤ +60°C


Downloads

BR323AL

BR323SS

Datasheets PDF logodownload PDF logodownload
ATEX certificates PDF logodownload PDF logodownload
Instruction manuals PDF logodownload PDF logodownload
Instruction manuals
(German language)
PDF logodownload PDF logodownload
Declarations of Conformity PDF logodownload PDF logodownload
Configuration Software ZIP logodownload ZIP logodownload
CAD files ZIP logodownload ZIP logodownload
