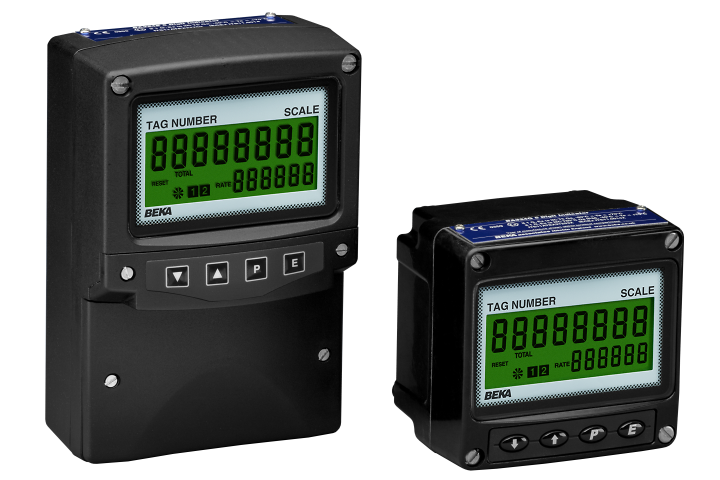

Rate totalisers



Features:

  • Separate easy to read rate and total flow displays
  • Robust enclosures, including stainless steel panel mounting instrument.
  • Models:
        One pulse input, externally powered
        Two pulse inputs, externally powered
        4/20mA input, loop powered
        Field and panel mounting
  • Certifications:
        Intrinsically safe Ex ia
        Ex nA & Ex tc for Zone 2 & 22 applications
        General purpose for use in safe area
  • Accessories:
        Backlight
        Isolated dual alarms
        Isolated pulse & 4/20mA outputs
        Pipe mounting kits
        Scale and tagging
  • Three year guarantee

This extensive range of rate totalisers includes models for use with pulse and 4/20mA output flowmeters. The rate of flow and total flow are displayed simultaneously in the same or in different engineering units. All parameters are easy to adjust on-site allowing these rate totalisers to be used with almost any flowmeter. Instruments can be supplied ready to install with customer specified configuration, scale and tag marking.

For more information, please choose the model which best suits your application from the tables below.


4/20mA Loop powered rate totalisers


Intrinsically safe,
field mounting
4/20mA Loop powered rate totaliser, Intrinsically safe, field mounting
Intrinsically safe,
panel mounting
4/20mA Loop powered rate totaliser, Intrinsically safe, panel mounting
Type nA,
field mounting
4/20mA Loop powered rate totaliser, Type nA, field mounting
General purpose,
field mounting
4/20mA Loop powered rate totaliser, General purpose, field mounting
General purpose,
panel mounting
4/20mA Loop powered rate totaliser, General purpose, panel mounting

Pulse input Externally powered rate totalisers


Intrinsically safe,
field mounting
Pulse input Externally powered rate totaliser, Intrinsically safe, field mounting
Intrinsically safe,
panel mounting
Pulse input Externally powered rate totalisers, Intrinsically safe, panel mounting
Type nA,
field mounting
Pulse input Externally powered rate totaliser, Type nA, field mounting

Pulse input Externally powered rate totalisers continued


Type nA,
panel mounting
Pulse input Externally powered rate totaliser, Type nA, panel mounting
General purpose,
field mounting
Pulse input Externally powered rate totaliser, General purpose, field mounting
General purpose,
panel mounting
Pulse input Externally powered rate totalisers, General Purpose, panel mounting
