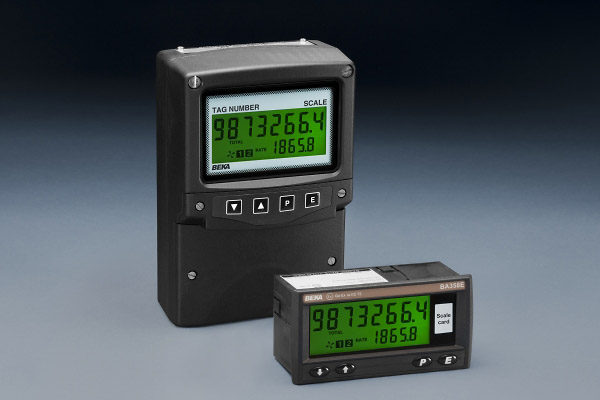

NEW loop powered rate totalisers



Features:

  • Compatible with previous models & offering following advantages:
        Larger displays
        Extended operating temperature
        Lower price
  • ATEX, IECEx, FM & cFM certification:
        Intrinsic safety for gas & dust
        Ex nA & Ex tc for Zone 2 and 22 applications
  • General purpose models

  • Panel mounting product dimensions
  • Field mounting product dimensions

Third generation loop powered 4/20mA Rate Totalisers that have larger digits and improved display visibility, plus ATEX, IECEx, FM and cFM certification for the intrinsically safe models. All are mechanically, electrically and safety compatible with the earlier instruments, so that existing system designs do not have to be re-engineered to benefit from the performance and economic advantages of these new 'E' instruments.

All the new models, which can simultaneously display the rate of flow and total flow in the same or different engineering units, have an extended operating temperature and include a square root extractor, sixteen segment lineariser and internal calibrator. Optional accessories include a backlight that may be loop or separately powered and dual alarms with isolated solid state outputs.

For more information, please choose the model which best suits your application from the table below.


Intrinsically safe,
field mounting
4/20mA Loop powered rate totaliser, Intrinsically safe, field mounting
Intrinsically safe,
field mounting
4/20mA Loop powered rate totaliser, Intrinsically safe, panel mounting
Type nA,
field mounting
4/20mA Loop powered rate totaliser, Type nA, field mounting
General purpose,
field mounting
4/20mA Loop powered rate totaliser, General purpose, field mounting
General purpose,
panel mounting
4/20mA Loop powered rate totaliser, General purpose, panel mounting
