Set point stations [set point generator], General purpose, panel mounting

Display instrumentation for use in hazardous and safe areas
Set point stations [set point generator]

Features:

  • Loop powered
  • Front panel push buttons
  • 5 digit 11mm high + bargraph
  • Noryl or rugged 316 stainless steel enclosure, both provide IP66 front of panel protection.
  • -40 to +70°C operation
  • Optional:
  • Backlight - may be loop or separately powered
    BA490 Rotary encoder
Product downloads
96 x 48mm Product dimensions
105 x 60mm Product dimensions (Rugged SS)

Product details
These general purpose panel mounting set point stations [set point generators] enable the current in a 4/20mA loop to be manually adjusted from within a process area. The set point station incorporates a 5 digit display plus a bargraph which can be calibrated to show the 4/20mA current in engineering units. Adjustment is via the front panel push buttons.

Other Set point stations in our range include:



To select the model and options for your application please refer to the following table.

To select the model for your application please refer to the following table.

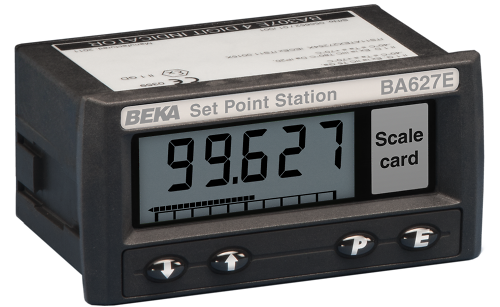

Model BA627E BA627E-SS
BA627E # BA627E-SS #
Mounting &
Enclosure		 Panel 96 x 48mm
 Rugged Stainless Steel
panel 105 x 60
Protection Front IP66, rear IP20
Display 5 digits 12.7mm high + bargraph
Control
 4 front panel push buttons
Optional
Backlight
 Yes
BA490
Rotary encoder
 Yes
Model

Mounting &
Enclosure
Protection
Display
Control
Downloads BA627E
 BA627E-SS
Datasheets PDFDownload PDFDownload
Ingress
certificates		 PDFDownload PDFDownload
Instruction
manuals		 PDFDownload PDFDownload
Abbreviated
manuals		 PDFDownload PDFDownload
Declarations of
Conformity (EU)
 PDFDownload PDFDownload
Declarations of
Conformity (UK)
 PDFDownload PDFDownload
CAD files PDFDownload PDFDownload

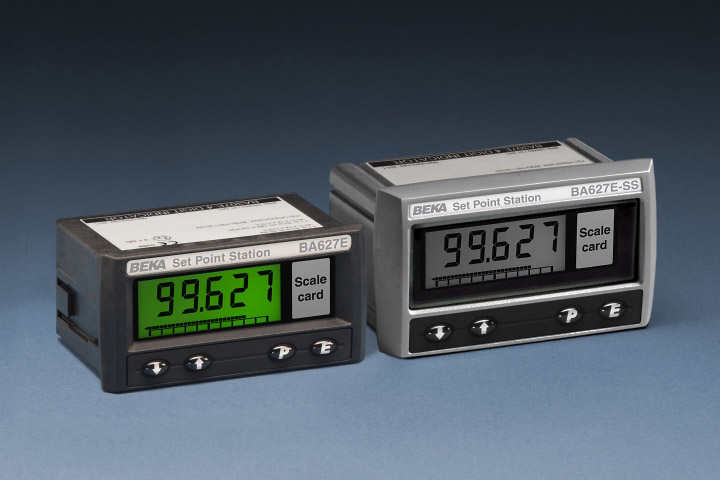

# Shown with optional loop powered backlight.
