Counters, General Purpose, field mounting

Display instrumentation for use in hazardous and safe areas
Counters

Features:

  • Reliable and cost effective
  • Proximity detector, open collector, magnetic pick-off, voltage pulse, or switch contact input.
  • Separate total and rate displays
  • Can display the sum or differences of the two inputs and includes a quadrature decoder for position measurements.
  • Isolated synchronous pulse output
  • Optional:
  • Internally powered display backlight
    Isolated Alarms
    Isolated 4/20mA output
    Stainless steel legend plate

Product details
This easy to use, general purpose counter can process and simultaneously display the total number of pulses received and their rate in the same or different engineering units from a wide variety of sensors. This two input model can display the sum or difference of the two inputs and can also display position and rate from a quadrature sensor.

Accessories, include a display backlight, isolated dual alarms and an isolated 4/20mA output.

Counters can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. An optional Stainless Steel legend plate is also available which can be supplied laser engraved with customer specified tag and application information.

To select the options for your application please refer to the following table.

Model BA564G
BA564G #
Mounting & Enclosure Field 122 x 120mm
Protection IP66
Display Primary: 8 digits 18mm high
Secondary: 6 digits 12mm high
No. of inputs 2
Optional
Backlight
Yes
Alarms
Yes
4/20mA output
Yes
Model

Mounting &
Enclosure
Protection
Display
No. of inputs
Downloads BA564G
Datasheet PDFDownload
Ingress certificate PDFDownload
Instruction manual PDFDownload
Abbreviated manual PDFDownload
Application guide PDFDownload
Declaration of Conformity (EU)
PDFDownload
Declaration of Conformity (UK)
PDFDownload
CAD files PDFDownload

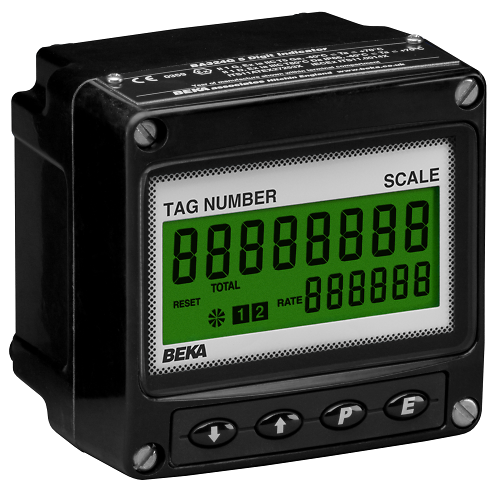

# Shown with optional backlight, separately powered.
