Eight variable FOUNDATION™ fieldbus display, Intrinsically safe, field mounting



FOUNDATION™ fieldbus logo

Features:

  • ATEX & IECEx intrinsic safety certification, optional FM & INMETRO.
  • FISCO compliant
  • Ex logoHigh contrast 86.5mm x 45mm display with backlight.
  • Up to 8 fieldbus variables
  • FOUNDATION™ fieldbus protocol
  • Bus powered
  • Six optional alarm outputs
Download logoProduct downloads

This BA484DF-F FOUNDATION™ fieldbus display instrument can display up to eight fieldbus process variables on a 86.5mm x 45mm screen.

Up to eight fieldbus variables may be displayed at the same time on one of eleven standard display screen formats, together with units of measurement and tag information. The operator can select the displayed screen via the front panel push-buttons, or these buttons may be disabled.

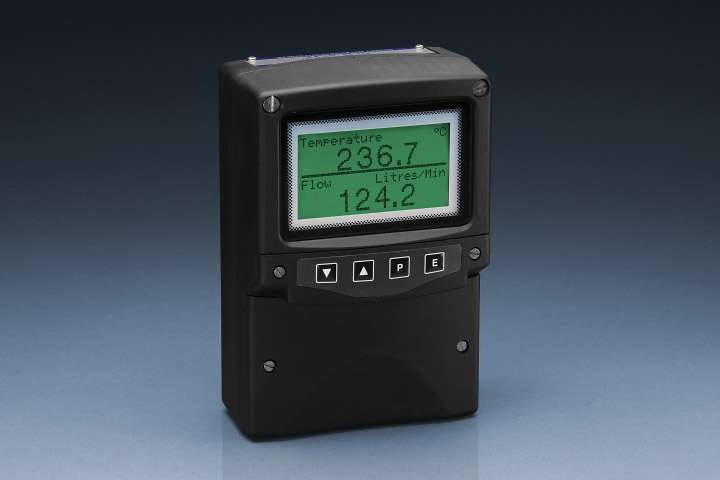

This field mounting model is housed in a robust IP66 glass reinforced polyester (GRP) enclosure with a toughened glass window that may be surface mounted, or pipe mounted using one of the accessory kits.

The fieldbus display can be supplied with six isolated alarm outputs, each of which may be linked to any of the displayed fieldbus variables. Configuration and alarm setpoints are entered via the front panel push-buttons which may be protected by a security code.

Other FOUNDATION™ fieldbus displays in our range include:





To select options for your application please refer to the following table.


Model

BA484DF-F

BA484DF-F Eight variable FOUNDATION™ fieldbus display
Protocol FOUNDATION™ fieldbus
Mounting Field
Protection IP66
Display High contrast 86.5mm x 45mm
with backlight, up to 8 fieldbus variables
Operator push buttons 4
Certification
Europe ATEX ATEX Group II Category 1G
Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +60°C
International IECEx Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +60°C
Optional
Connections for remote operator push buttons 6
Alarm outputs 6
USA FM Certification 3610 Entity CL I, II, III Div. 1
Gp A, B, C, D, E, F & G T4 Ta = +60°C

3611 Nonincendive CL I, II, III Div. 2
Gp A, B, C, D, E, F & G T4 Ta = +60°C
Europe ATEX Dust certification Group II Category 1D
Ex ia IIIC T125°C Da IP66
-40°C ≤ Ta ≤ +60°C
International IECEx Dust certification Ex ia IIIC T125°C Da IP66
-40°C ≤ Ta ≤ +60°C
Brazil INMETRO Gas certification Ex ia IIC T4 Ga -40°C ≤ Ta ≤ +60°C
Brazil INMETRO Dust certification Ex ia IIIC T125°C Da IP66
-40°C ≤ Ta ≤ +60°C
