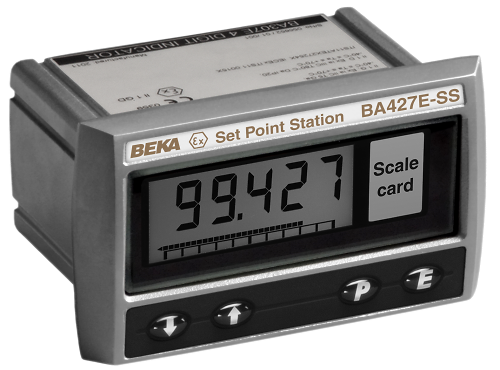

Rugged Set point station [set point generator], Intrinsically safe, panel mounting



Ex logo

Features:

  • ATEX and IECEx Ex ia intrisic safety certification.
  • Rugged stainless steel model that may be mounted in an Ex e, Ex p, Ex n or Ex t panel enclosures without invalidating panel enclosure certification.
  • Panel mounting IP66 front
  • Loop powered
  • Front panel push buttons
  • 5 digit display with bargraph
  • Optional:
        Backlight - may be loop or separately powered
        BA490 Rotary encoder
Download logoProduct downloads

This intrinsically safe panel mounting set point station [set point generator] enables the current flowing in a 4/20mA loop to be manually adjusted from within a hazardous area. The certification permits the BA427E-SS to be installed in a Ex e, Ex p, Ex n or Ex t panel enclosure without invalidating the certification of the panel enclosure which allows easy integration with hazardous electrical control equipment.

The BA427E-SS incorporates a 5 digit display plus a bargraph which can be calibrated to show the 4/20mA current in engineering units. Adjustment is via the front panel push buttons.

To select options for your application please refer to the following table.


Model

BA427E-SS

BA427E-SS Set point station [set point generator]
Mounting Rugged stainless steel
panel 105 x 60
Protection Front IP66, rear IP20
Display 5 digits 11mm high + bargraph
Control 4 front panel push buttons
Certification
Europe ATEX Gas - Group II Category 1G Ex ia IIC
T5 Ga -40°C ≤ Ta ≤ +60°C
Dust - Group II Category 1D Ex ia IIIC
T80°C Da IP20 -40°C ≤ Ta ≤ +60°C

May be installed in Ex e, Ex n, Ex p or Ex t panel enclosure without invalidating enclosure certification.
International IECEx Gas - Ex ia IIC T5 Ga
-40°C ≤ Ta ≤ +60°C
Dust - Ex ia IIIC T80°C
Da IP20 -40°C ≤ Ta ≤ +60°C

May be installed in Ex e, Ex n, Ex p or Ex t panel enclosure without invalidating enclosure certification.
Optional
Backlight Green - may be loop or separately powered
BA490 Rotary encoder Yes


Downloads

BA427E-SS

Datasheet PDF logodownload
ATEX certificate PDF logodownload
IECEx certificate PDF logodownload
Instruction manual PDF logodownload
Declaration of Conformity PDF logodownload
