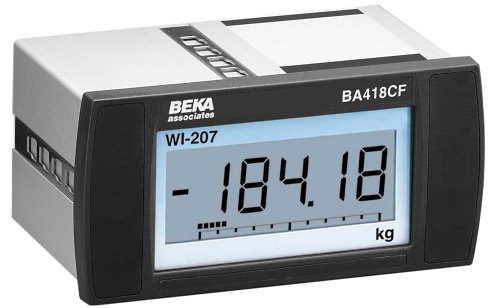

Single variable FOUNDATION™ fieldbus indicator, Intrinsically safe, panel mounting

Display instrumentation for use in hazardous and safe areas
FOUNDATION™ fieldbus indicator

Features:

  • Intrinsic safety certification
  • FISCO compliant
  • Large 5 digit 20mm high display
    + 31 segment bargraph.
  • Displays single fieldbus variable
  • FOUNDATION™ fieldbus protocol
  • ITK 6.3 compliant
  • Bus powered
Foundation Fieldbus logoIECEx logoEX logoCE logoUKCA logoFM logoCCOE PESO logo

Product details
This cost effective BA418CF-F fieldbus indicator displays a single fieldbus process variable on a bold five digit display and a 31 segment analogue bargraph. It incorporates an Input Selector fieldbus function block which is supported by most fieldbus hosts.

This panel mounting model has an IP66 front panel with a gasket to seal the joint between the instrument and the panel.

The fieldbus indicator has ATEX, FM, cFM and IECEx intrinsically safe certification and complies with the Fieldbus Intrinsically Safe Concept FISCO. It also has Ex ia and Ex ic entity input safety parameters allowing connection to most intrinsically safe fieldbus segments.

Other FOUNDATION™ fieldbus indicators in our range include:



Model BA418CF-F
BA418CF-F
Protocol
FOUNDATION™ fieldbus
Mounting Panel 144 x 72
Protection Front IP66, rear IP20
Display Large 5 digit 20mm high display
+ 31 segment bargraph
Certification
International IECEx
Ex ia IIC T4 Ga
FISCO field device Ex ia IIC T4 Ga

Ex ic IIC T4 Gc
-40°C ≤ Ta ≤ +70°C
Europe ATEX Group II Category 1G Ex ia IIC T4 Ga
FISCO field device Ex ia IIC T4 Ga
Group II Category 3G Ex ic IIC T4 Gc
-40°C ≤ Ta ≤ +70°C
UK UKEX Group II Category 1G Ex ia IIC T4 Ga
FISCO field device Ex ia IIC T4 Ga
Group II Category 3G Ex ic IIC T4 Gc
-40°C ≤ Ta ≤ +70°C
USA FM
Entity CL I Div. 1
Gp A, B, C & D T4 FISCO Ta = +70°C

Nonincendive CL I Div. 2
Gp A, B, C & D T4 FNICO Ta = +70°C
Canada cFM
Entity CL I Div. 1
Gp A, B, C & D T4 FISCO Ta = +70°C

Nonincendive CL I Div. 2
Gp A, B, C & D T4 FNICO Ta = +70°C
India CCOE/PESO
Ex ia IIC T4 Ga
FISCO field device Ex ia IIC T4 Ga
Ex ic IIC T4 Gc
-40°C ≤ Ta ≤ +70°C
