Features:
Product details
These versatile intrinsically safe Timer or Clocks can perform a host of timing and control functions such as sampling or dosing within a hazardous area. An easy to use state and event structure enables relatively complex timing functions to be easily configured. Timing operations may be started and stopped via the inputs, or from the front panel buttons. The instrument display shows progress of the operation and international certification permits worldwide installation.
An internally powered backlight is available as a factory fitted accessory.
Timer or Clocks can be supplied configured and fitted with a customer specified printed scale card showing the units of time for no additional charge. Specified tag or application information can also be printed onto the rear of the instrument.
Other timers or clocks in our range include:
To select the model and options for your application please refer to the following table.
To select the model for your application please refer to the following table.

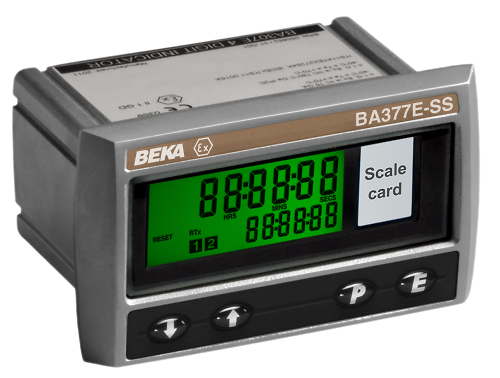

| Model | BA377E | BA378E | BA377E-SS |
|---|---|---|---|
 # |
 # |
 # |
|
| Mounting & Enclosure |
Panel 96 x 48 mm |
Panel 144 x 72 mm |
Rugged panel 105 x 60 mm |
| Case material |
Noryl |
316 Stainless Steel |
|
| Protection | Front IP66, rear IP20 |
||
| Display | 8 digits 9mm high 6 digits 6mm high |
8 digits 18mm high 6 digits 12mm high |
8 digits 9mm high 6 digits 6mm high |
| No. of inputs | 1 | 2 | 1 |
| Certification | |||
| International IECEx |
Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C |
Ex ia IIC T5 Ga Ex ia IIIC T80°C Db -40°C ≤ Ta ≤ +60°C |
|
| Europe ATEX |
Group II Category 1G Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C |
Group II Category 1G and 2D Ex ia IIC T5 Ga Ex ia IIIC T80°C Db -40°C ≤ Ta ≤ +60°C |
|
| UK UKEX |
Group II Category 1G Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C |
Group II Category 1G and 2D Ex ia IIC T5 Ga Ex ia IIIC T80°C Db -40°C ≤ Ta ≤ +60°C |
|
| USA & Canada ETL & cETL Intrinsic safety |
Class I Div 1 Gp A, B, C, D T5 (USA & Canada) Class II Div 1 Gp E, F, G. Class III Div 1 (USA & Canada) Class I Zone 0 AEx ia IIC T5 Ga (USA) Ex ia IIC T5 Ga (Canada) -40°C ≤ Ta ≤ 70°C |
||
| Zone 20 AEx ia IIIC T80°C Da (USA) Ex ia IIIC T80°C Da (Canada) -40°C ≤ Ta ≤ 60°C May be installed in an AEx e, AEx p, AEx n or AEx t panel enclosure without invalidating enclosure certification. |
|||
| USA & Canada ETL & cETL Nonincendive |
Class I Div 2 Gp A, B, C, D T5 (USA & Canada) Class II Div 2 Gp F, G. Class III Div 2 (USA & Canada) -40°C ≤ Ta ≤ 70°C |
||
| China CCC Ex |
Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C |
Ex ia IIC T5 Ga Ex ia IIIC T80°C Db -40°C ≤ Ta ≤ +60°C |
|
| India CCOE/PESO |
Ex ia IIC T5 Ga -40°C ≤ Ta ≤ +70°C |
Ex ia IIC T5 Ga Ex ia IIIC T80°C Db -40°C ≤ Ta ≤ +60°C |
|
| Optional | |||
| Backlight |
Yes |
||
| Control outputs |
Yes |
||
| Status output |
Not available |
Standard |
Not available |
|
|
|
|---|---|
| Model | |
| Mounting & Enclosure |
|
| Case material | |
| Protection |
|
| Display |
|
| No. of inputs |
|
| Downloads | BA377E |
BA378E |
BA377E-SS |
|---|---|---|---|
| Datasheets |  Download |
Download |
Download |
| IECEx certificates |
Download |
Download |
Download |
| ATEX certificates |
Download |
Download |
Download |
| UKEX certificates |
Download |
Download |
Download |
| ETL & cETL certificate |
Download |
Download |
Download |
| CCC Ex certificates |
Download |
Download |
Download |
| CCOE/PESO certificates |
Download |
Download |
Download |
| Ingress certificates |
Download |
Download |
Download |
| Instruction manuals |
Download |
Download |
Download |
| Abbreviated manuals |
Download |
Download |
Download |
| Application guides |
Download |
Download |
Download |
| Declarations of Conformity (EU) |
Download |
Download |
Download |
| Declarations of Conformity (UK) |
Download |
Download |
Download |
| CAD files |  Download |
Download |
Download |

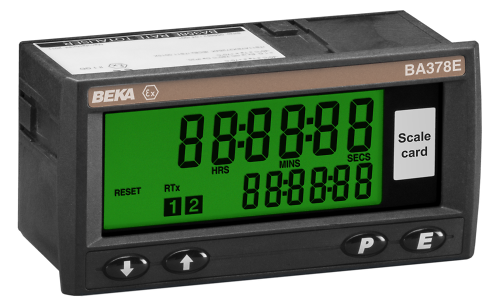

# Shown with optional backlight, separately powered.
